With a 1020mm track included this circular saw is hard to ignore. Power and precision at the forefront of its design, the R185CCSX ensures accuracy and reliability to get the job done faster, smoother and safer than ever before. True value for money with 3 years limited warranty.

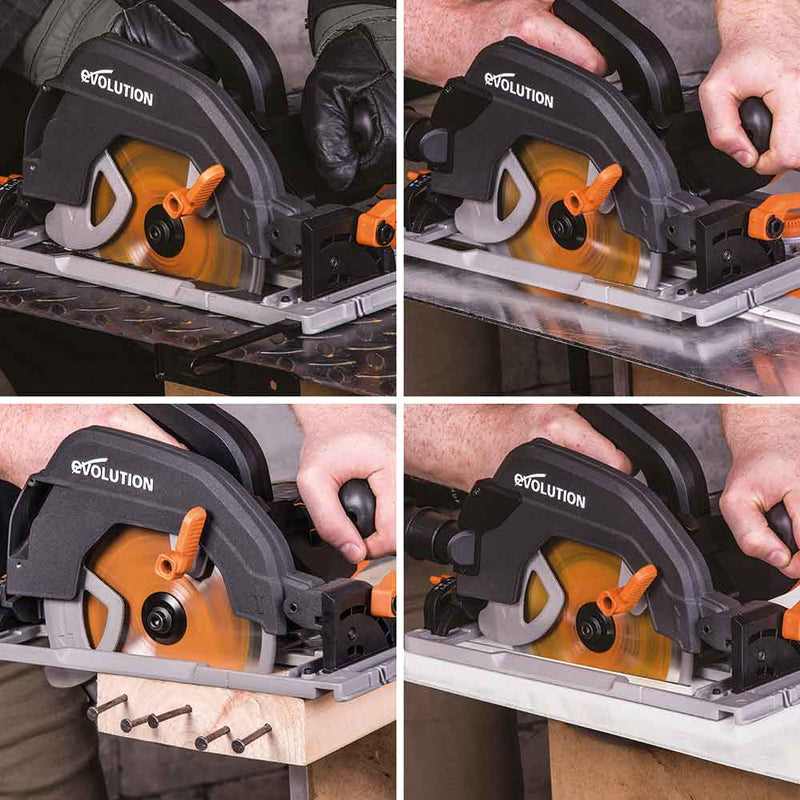

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1600W hi-torque motor with optimized gearbox & blade system.
- 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
- Ergonomic, soft-grip handles to provide maximum control, versatility, and precision.
- Dust extraction port & adaptor included for vacuum compatibility.

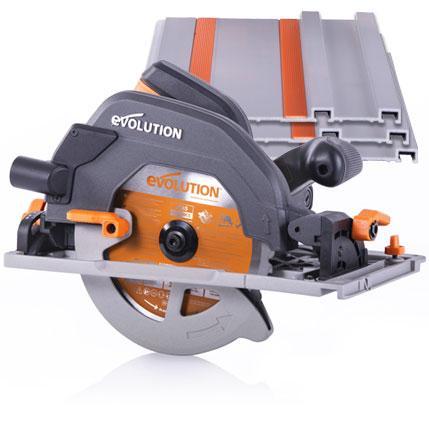

- 1020mm Circular Saw Track included. Supplied in 3x pieces with connectors.
- Compatible With Evolution's 1.4m & 2.8m Tracks (Sold Separately)
- Robust & sturdy construction with even weight distribution, weighing only 4.8kg

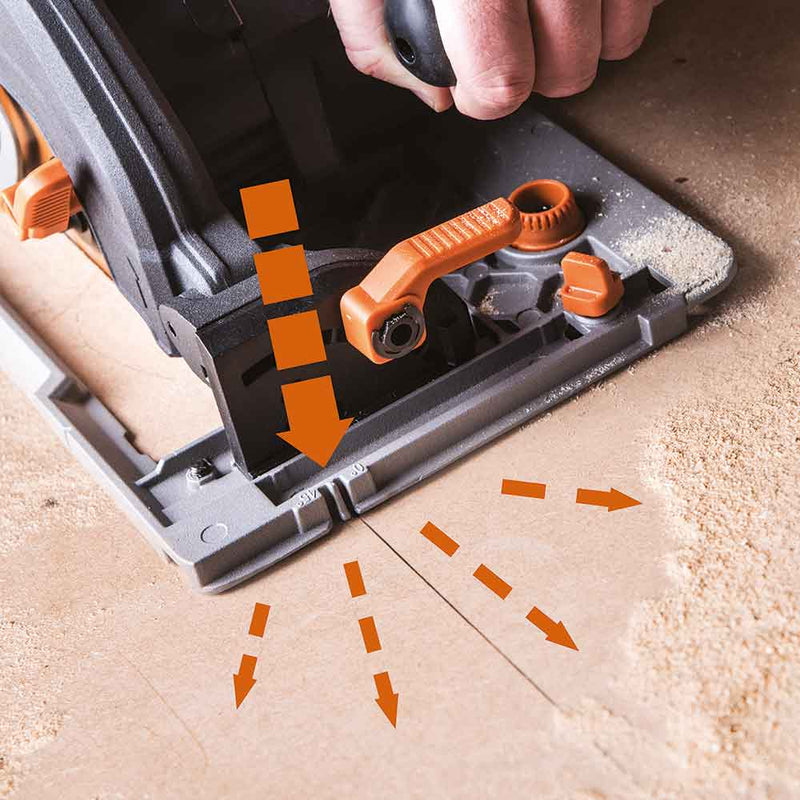

- Channeled airflow & base indicators ensure optimum visibility of your cutting line.
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
|Motor (110V 50Hz):||1600W|
|Motor (240V 50Hz):||1600W|
|Speed No Load (110V):||3700 rpm|
|Speed No Load (240V):||3900 rpm|
|Max. Bevel (Left):||45°|
|Circular Saw Base:||Cast Aluminium|
|No. of Teeth:||16|
|Max. Depth of Cut (0°):||64mm (59mm w/Track)|
|Max. Depth of Cut (45°):||47mm (42mm w/Track)|
|Mild Steel Plate
|Mild Steel Box Section
(Max. Wall Thickness):
|Product Dimensions:||255mm x 375mm x 265mm|
|Packaging Dimensions:||380mm x 300mm x 250mm|
|Sound Pressure Level LPA:||94,3dB(A)
|Sound Power Level LWA:||105,3dB(A)
|Vibration - Main Handle (Sawing Wood):||Ah,w= 3,347m/s2|
|Vibration - Auxiliary Handle (Sawing Wood):||Ah,w= 3,119m/s2|
|Vibration - Main Handle (Sawing Metal):||Ah,M= 3,572m/s2|
|Vibration - Auxiliary Handle (Sawing Metal):||Ah,M= 3,241m/s2|
|16T Multi-Material TCT Blade|
|Hex Key (Blade Change)|
|Hex Key (Track Connecting)|
|Parallel Edge Guide|
|Dust Port Adapter|
|Dust Hose Connector|
|1020mm Track (3x 340mm Sections)|
|Connector Bars (x4) & Screws (x16)|
