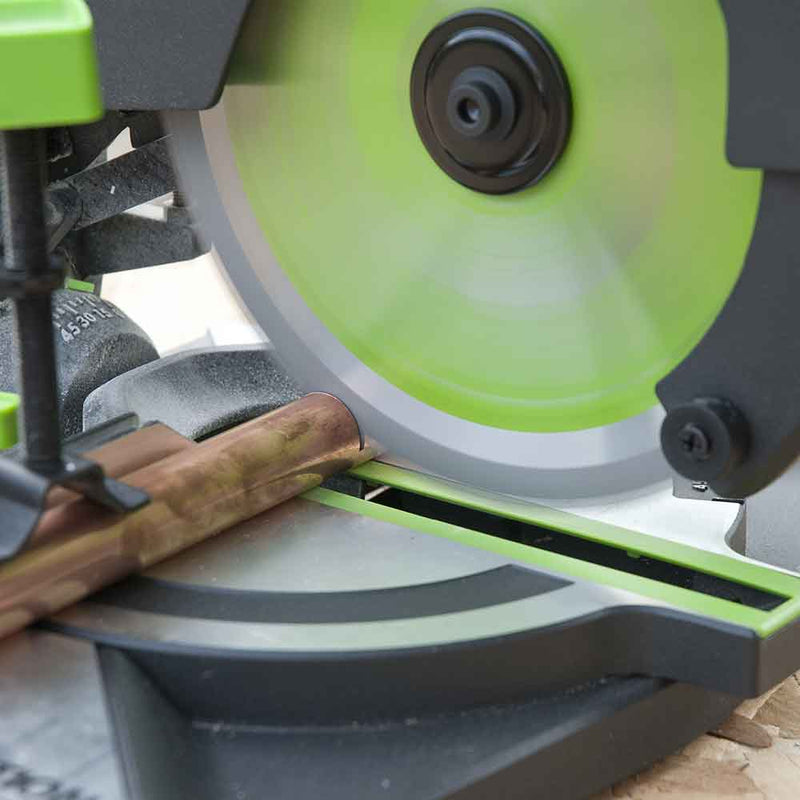

Multi-Material cutting technology. One saw, one blade, cuts all.* Accurate cutting with 0 - 45-degree bevel tilt and 50 - 50-degree mitre angles. Reliable, smooth, square cut every time in a variety of materials. Powerful 1200W hi-torque motor with optimized gearbox & blade system. Compact, lightweight & robust design, weighing only 5.8kg. Easy to carry with one hand and stare away taking up very little space.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 0˚ - 45˚ bevel tilt and 50˚ - 50˚ mitre angles.
- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimised gearbox & blade system.
- Compact, lightweight & robust design, weighing only 5.8kg. Easy to carry with one hand and stare away taking up very little space.
- 125mm x 55mm max. cross cut capacity.
- Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚ covers all common cutting angles accurately and reliably.
- Ergonomic trigger handle designed for left and right-handed use.
- Compatible with the Evolution Mitre Saw Stand and 210mm Diamond blade, (sold separately).
- Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
|Motor (240V 50Hz):||1200W|
|Speed No Load:||3750 rpm|
|Max. Bevel (Left):||45°|
|No. of Teeth:||20|
|Max. Cross Cut (0° x 0°):||125mm x 55mm|
|Max. Bevel Cut (0° x 45°):||125mm x 35mm|
|Max. Mitre Cut (45° x 0°):||85mm x 55mm|
|Max. Compound Cut (45° x 45°):||85mm x 35mm|
|Mild Steel Plate
|Mild Steel Box Section
(Max. Wall Thickness):
|Product Dimensions:||260mm x 393mm x 381mm|
|Packaging Dimensions:||420mm x 290mm x 310mm|
|Product Weight:||5.8 kg|
|Packaged Weight:||7.2 kg|
|Sound Pressure Level LPA:||110V: 96.02 dB(A) / 220-240V: 97.14dB(A)|
|Sound Power Level LWA:||110V: 109.02 dB(A) / 220-240V: 110.14dB(A)|
|Uncertainty K:||KpA & KWA: K=3 dB(A)|
|20T Multi-Material TCT Blade|
|Top Hold Down Clamp|
|6mm Blade Change Allen Key|
