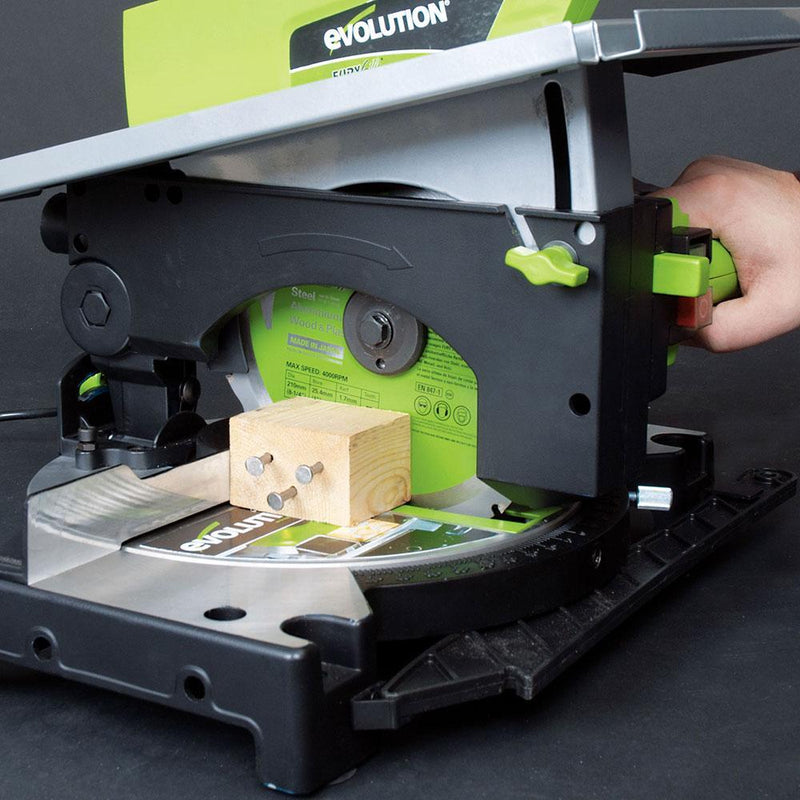

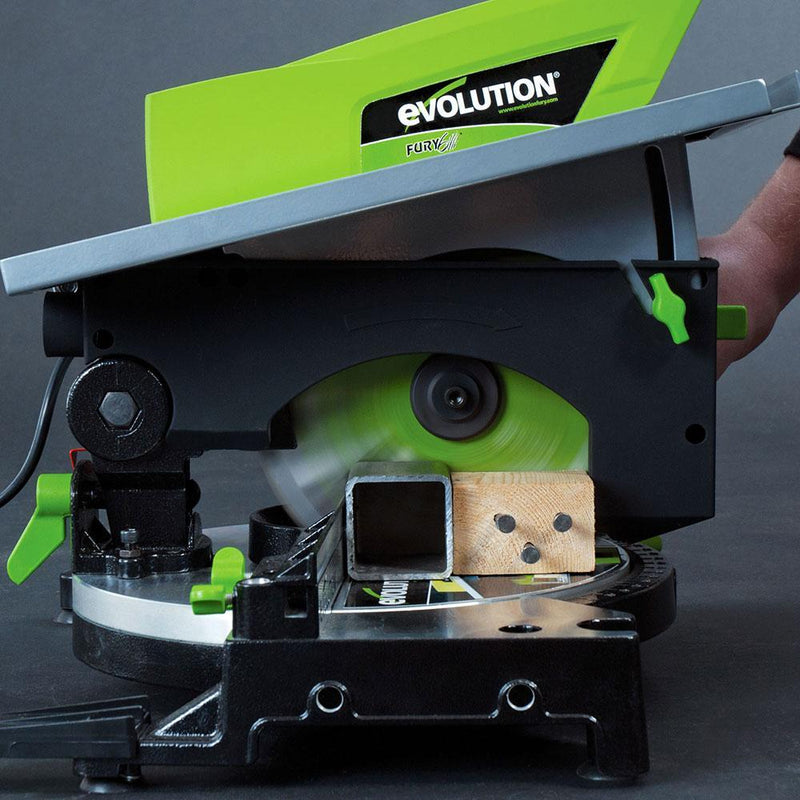

- Utilising patented professional RAGE® technology; easily cuts Steel, Aluminium, Wood (even wood with nails) and Plastic, using just one blade! Features a hi-torque gearbox, which reduces motor stresses, improving performance and durability.

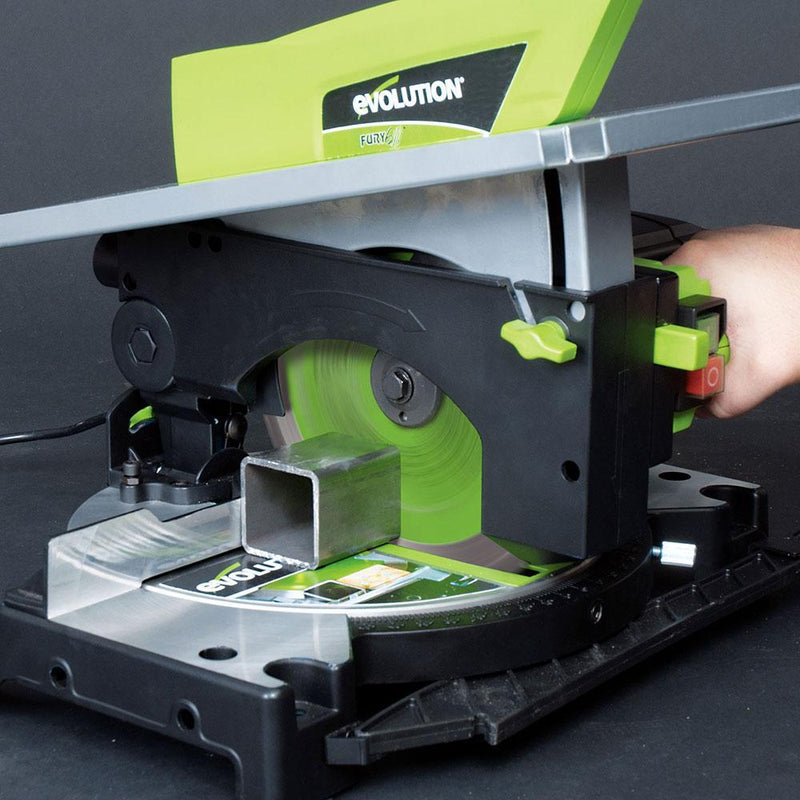

- Advanced performance; out performs normal saws. When cutting Steel (only in Mitre mode), it leaves an instantly workable finish, producing no heat, no burr and virtually no sparks.

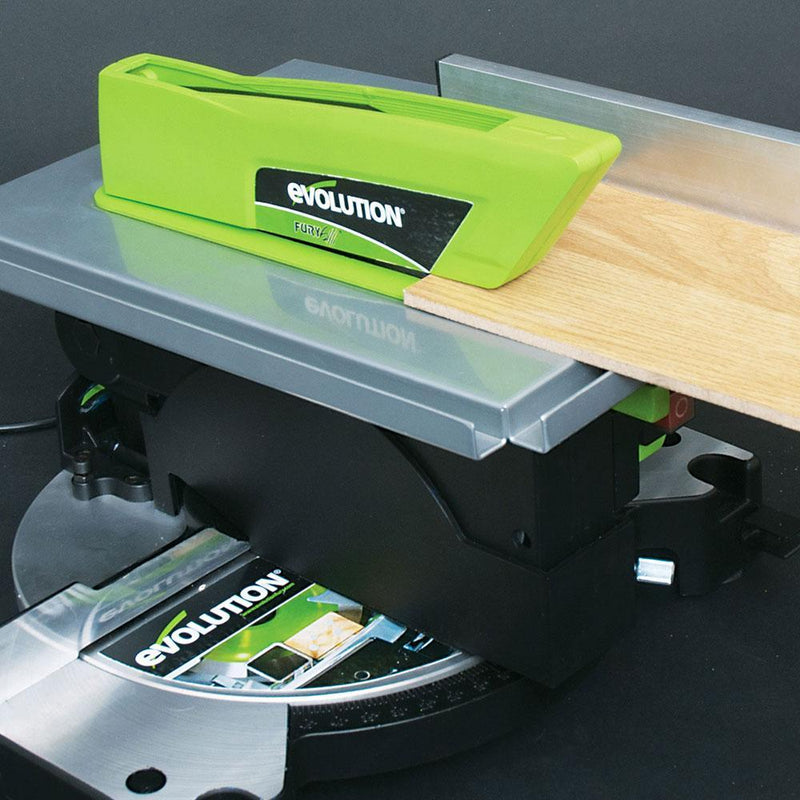

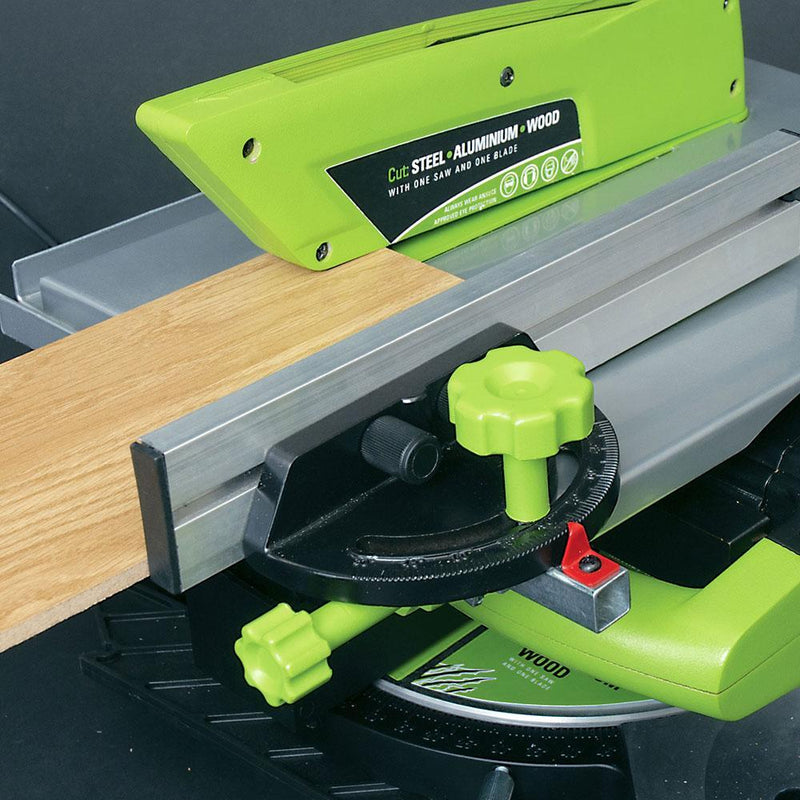

- Table Saw - Sturdy rip fence allows for fast, accurate straight cuts to be made on wood materials. Do not cut metal or metallic materials when the machine is configured as a Table Saw. Mitre Saw mode - Mitre stops (left & right) at 5°, 10°, 15°, 20°, 25°, 30°, 35°, 40° & 45°.
- Switching between functions is quick and simple, plus the dedicated on/off switches for both mitre and table saw ensures ultra safe operation. The saw is also workbench mountable and supplied with rubber suction feet which help to keep it firmly in place on work surfaces.
- Also features durable die-cast aluminium base, resistant to the most demanding metallic applications.
|Motor (240V 50Hz):||1200W|
|Speed No Load:||3500 rpm|
|Max. Mitre:||47° - 47°|
|Positive Mitre Stops:||0°, 5°, 10°, 15°, 20°, 25°, 30°, 35°, 40°, 45°|
|Max. Bevel (Left):||45°|
|No. of Teeth:||20|
|Max. Cross Cut (0° x 0°):||115mm x 55mm|
|Max. Bevel Cut (0° x 45°):||115mm x 25mm|
|Max. Mitre Cut (45° x 0°):||65mm x 55mm|
|Max. Compound Cut (45° x 45°):||40mm x 25mm|
|Mild Steel Plate
|Mild Steel Box Section
(Max. Wall Thickness):
|Max. Depth of Cut (Table Mode):||32mm|
|Product Dimensions:||300mm x 430mm x 410mm|
|Table Surface Area||380mm x 270mm|
|Product Weight:||9.45 kg|
|Packaging Dimensions:||420mm x 400mm x 300mm|
|Packaged Weight:||14.6 kg|
|Sound Pressure Level LPA:||94.57dB(A)
|Sound Power Level LWA:||107.57dB(A)
|20T Multi-Material TCT Blade|
|Hold Down Clamp|
|Dust Port Adapter|
|Hex Key (6mm)|
|Hex Key (5mm)|
|Auxiliary Lower Blade Guard|
|Rear Stabilising Arms|
