The ultimate multi-material cutting circular saw. Designed by the trade for the trade. The R185CCSX+ model gives you extra functionality, extra support, and extra reach than any other Evolution circular saw in the family. Integrated LED light, channeled air-flow, 4m cable, storage bag and compatibility with Evolution's 1.4m & 2.8m tracks, are just some of the features included in this package. (Tracks Sold Separately).

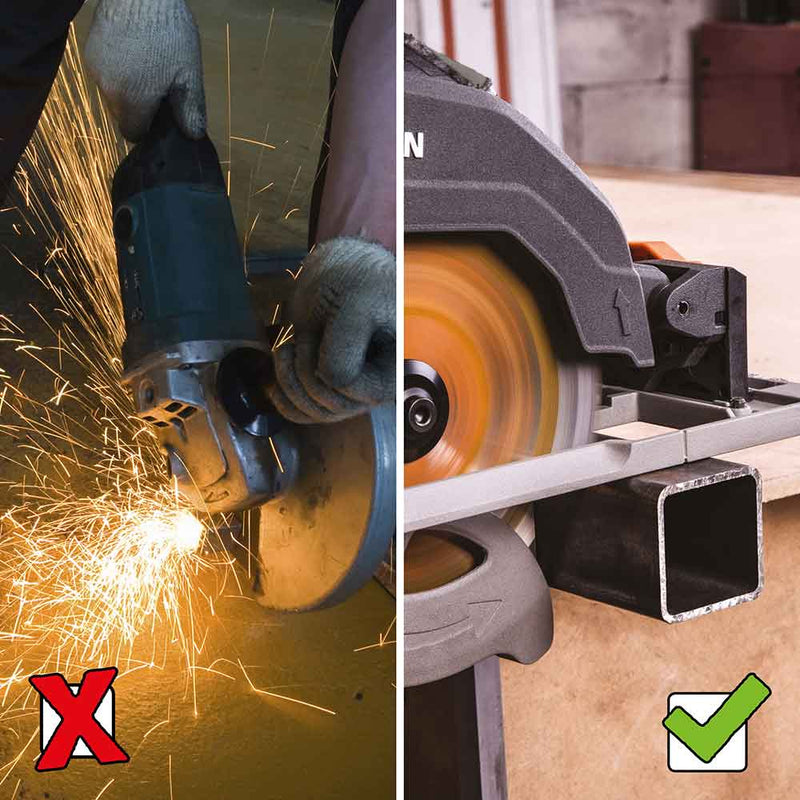

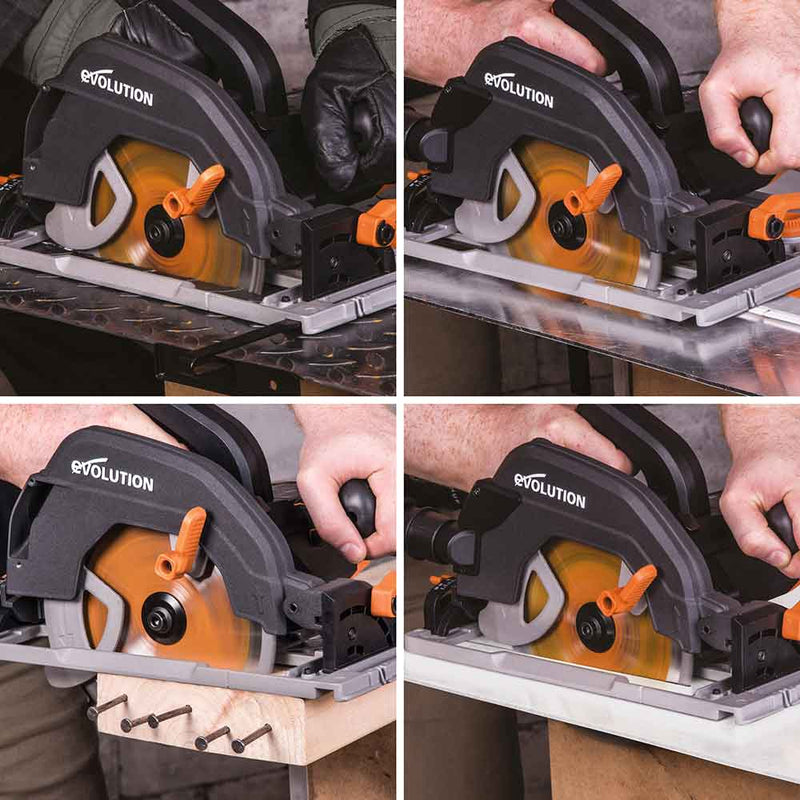

- Multi-Material cutting technology. One saw, one blade, cuts all.*

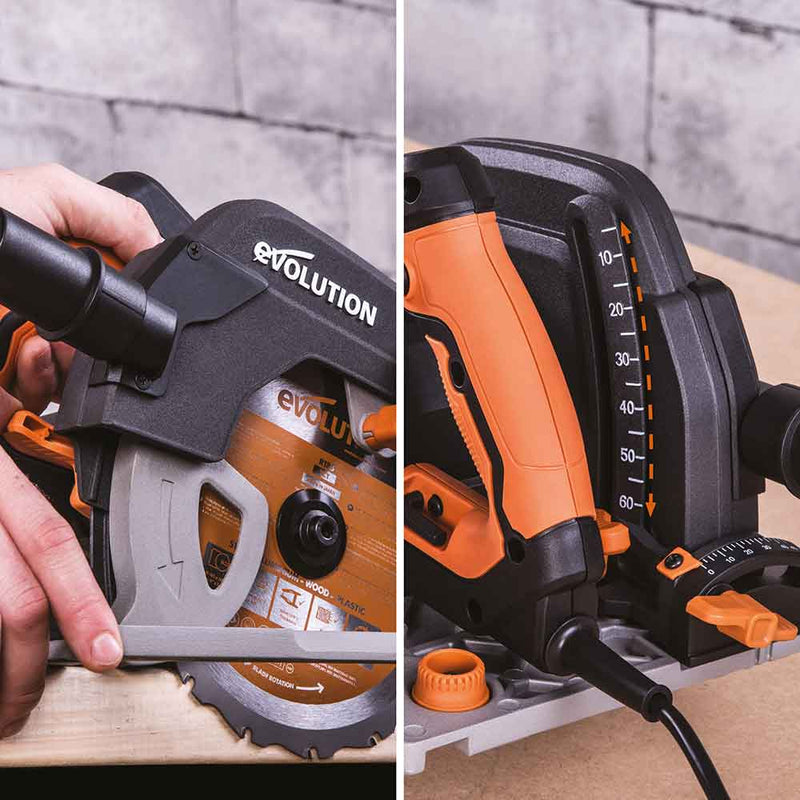

- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting.

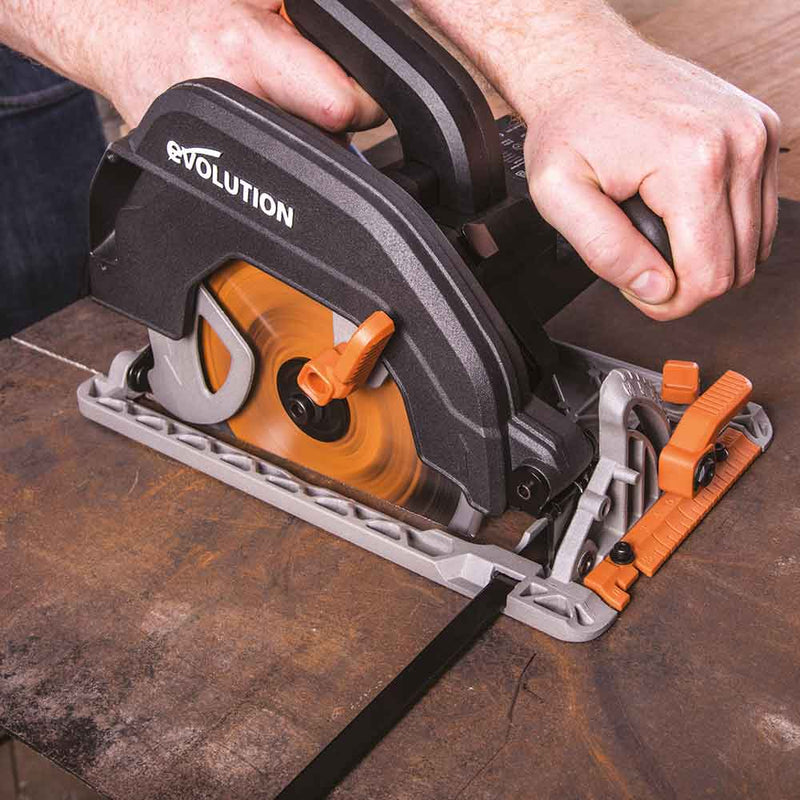

- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1600W hi-torque motor with optimised gearbox & blade system.
- 0° - 45° bevel tilt with virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.
- Ergonomic, soft grip handles provide maximum control, versatility and precision.

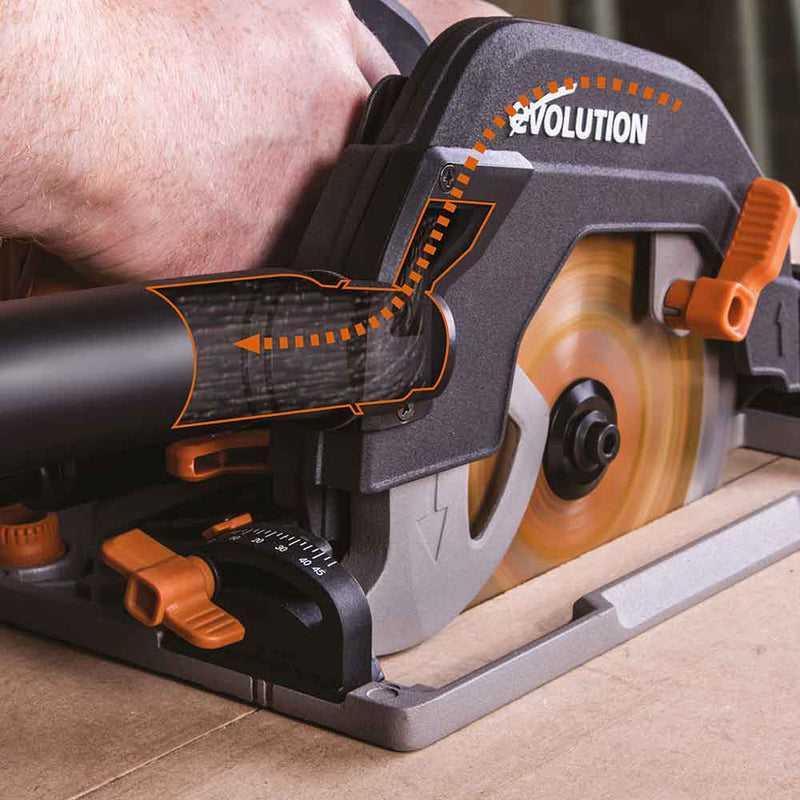

- Dust extraction port & adaptor included for vacuum compatibility.
- Track Compatible With: Evolution's 1.4m & 2.8m Tracks (Sold Separately)
- Robust & sturdy construction with even weight distribution, weighing 5.1kg
- 3 Year limited warranty.

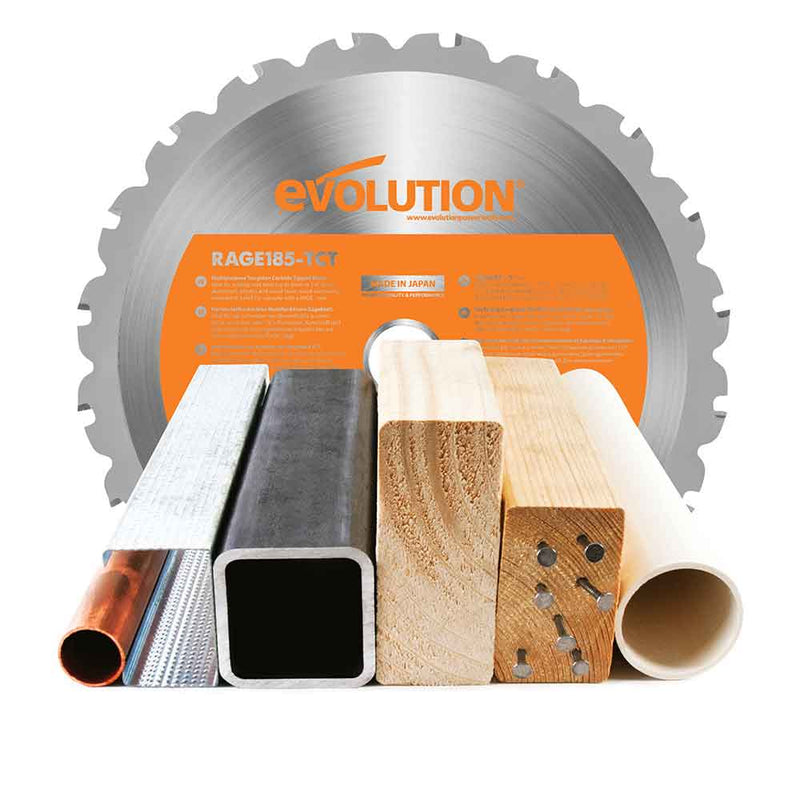

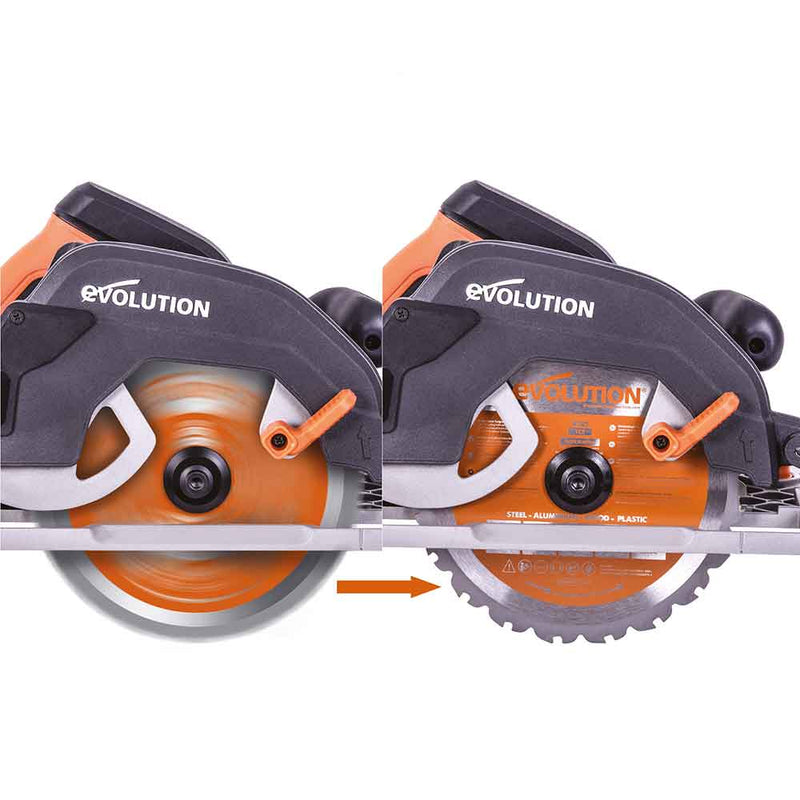

- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.

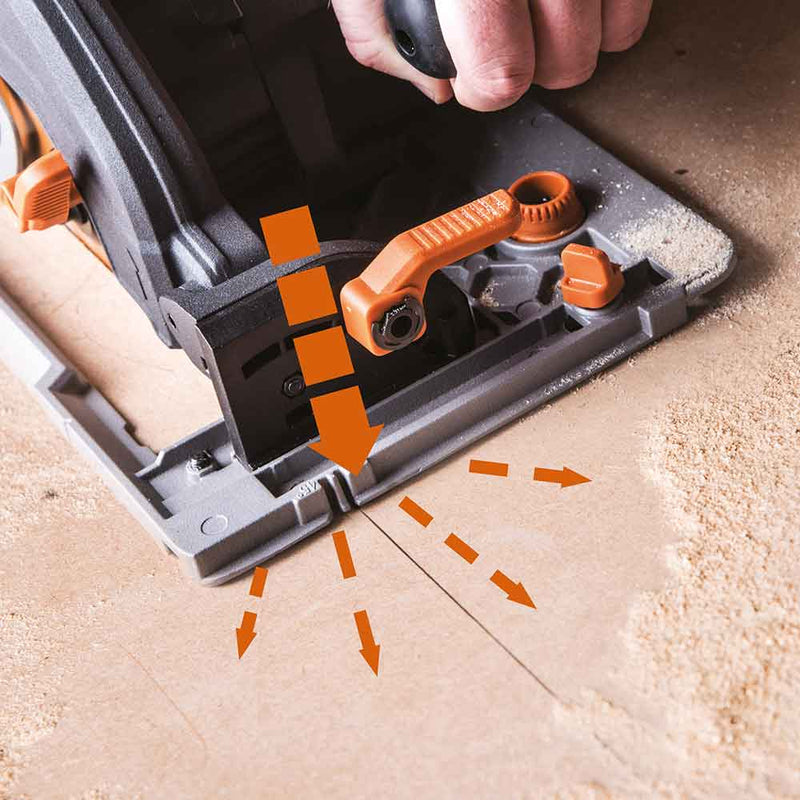

- Optimum visibility of your cutting line with LED Light & channelled air flow.

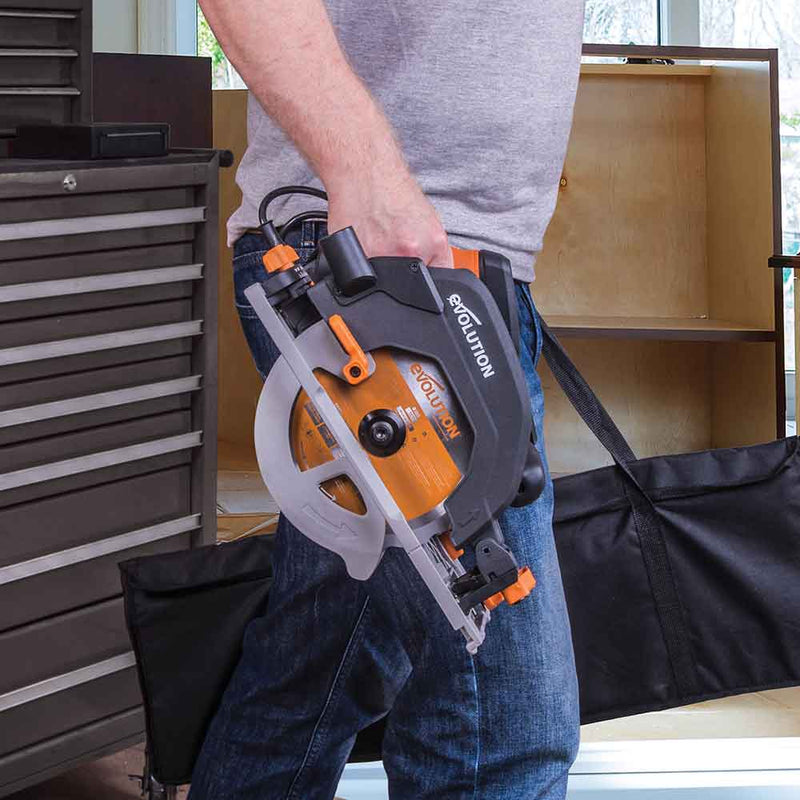

- Easy to transport and carry around the workplace with storage bag included.

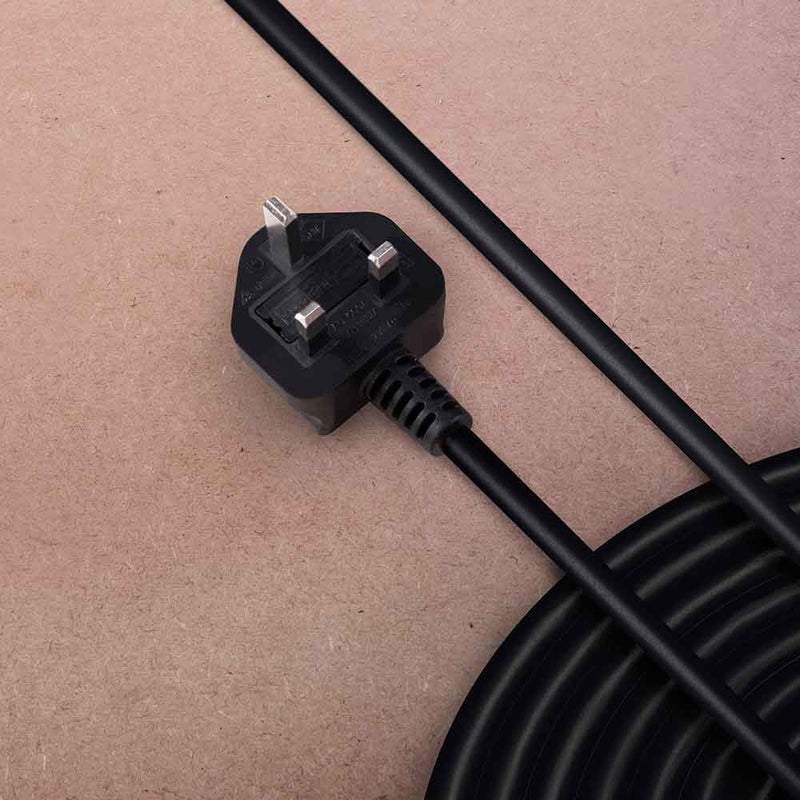

- 4m cable gives you the maximum power and the extended reach you need.
|Motor (110V 50Hz):||1600W|
|Motor (240V 50Hz):||1600W|
|Speed No Load (110V):||3700 rpm|
|Speed No Load (240V):||3900 rpm|
|Max. Bevel (Left):||45°|
|Circular Saw Base:||Cast Aluminum|
|No. of Teeth:||20|
|Max. Depth of Cut (0°):||64mm (59mm w/Track)|
|Max. Depth of Cut (45°):||47mm (42mm w/Track)|
|Mild Steel Plate

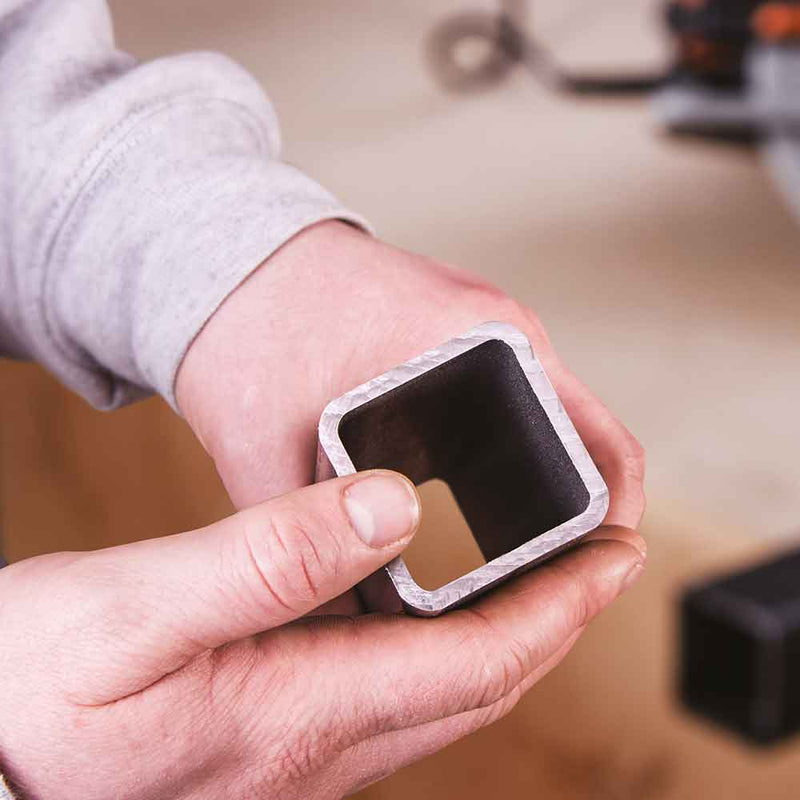

|Mild Steel Box Section
(Max. Wall Thickness):
|Product Dimensions:||255 x 375 x 265 mm|
|Packaging Dimensions:||380 x 300 x 280 mm|
|Product Weight:||5.1 kg|
|Packaged Weight:||7.2 kg|
|Sound Pressure Level LPA:||94,3dB(A)
|Sound Power Level LWA:||105,3dB(A)
|Vibration - Main Handle (Sawing Wood):||Ah,w= 3,347m/s2|
|Vibration - Auxiliary Handle (Sawing Wood):||Ah,w= 3,119m/s2|
|Vibration - Main Handle (Sawing Metal):||Ah,M= 3,572m/s2|
|Vibration - Auxiliary Handle (Sawing Metal):||Ah,M= 3,241m/s2|
|20T Multi-Material TCT Blade|

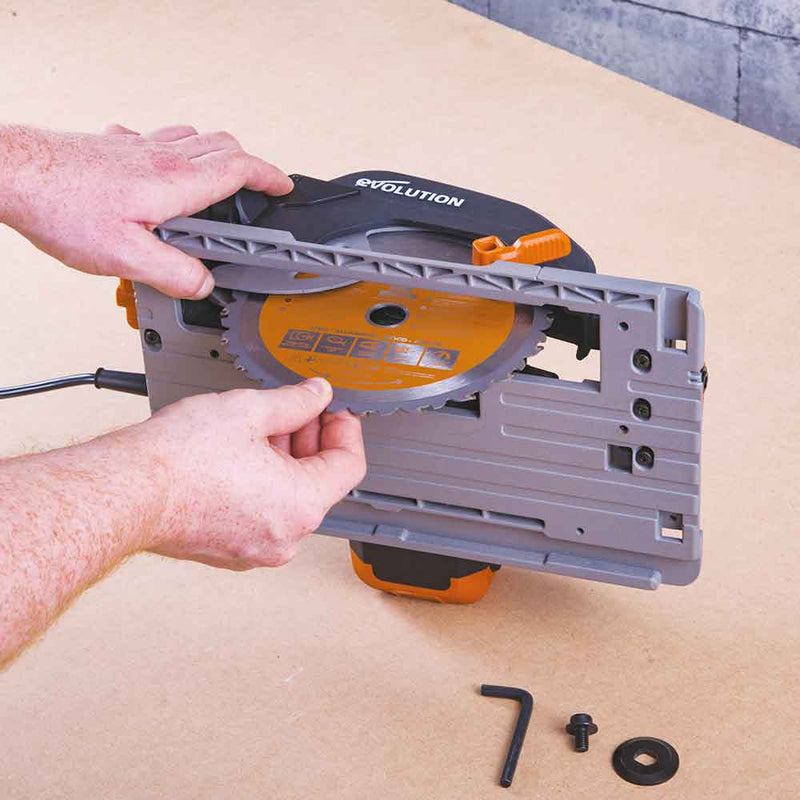

|Hex Key (Blade Change)|

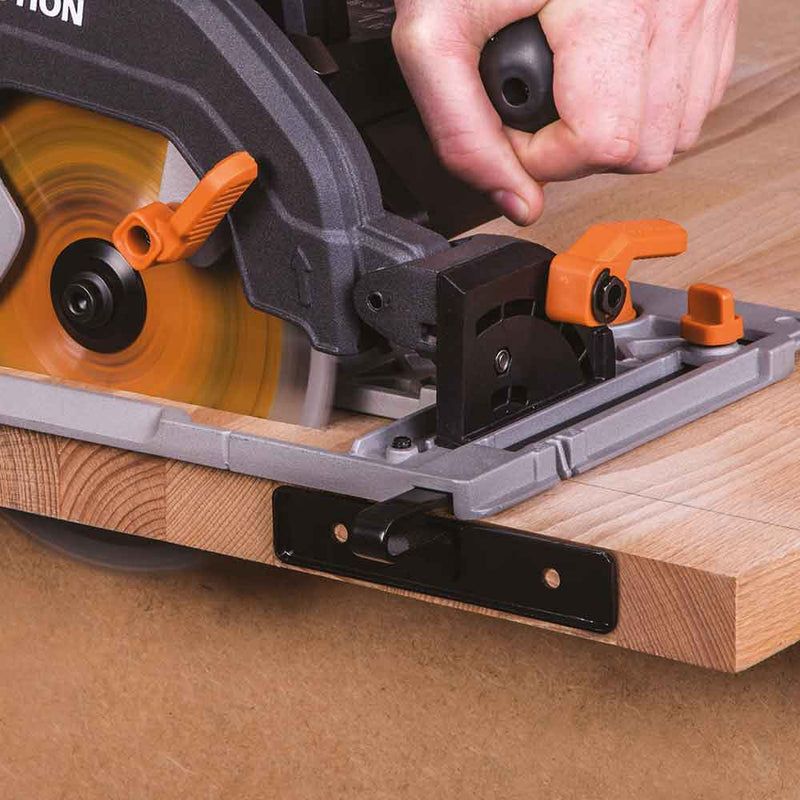

|Parallel Edge Guide|
|Dust Port Adapter|
|Dust Hose Connector|
