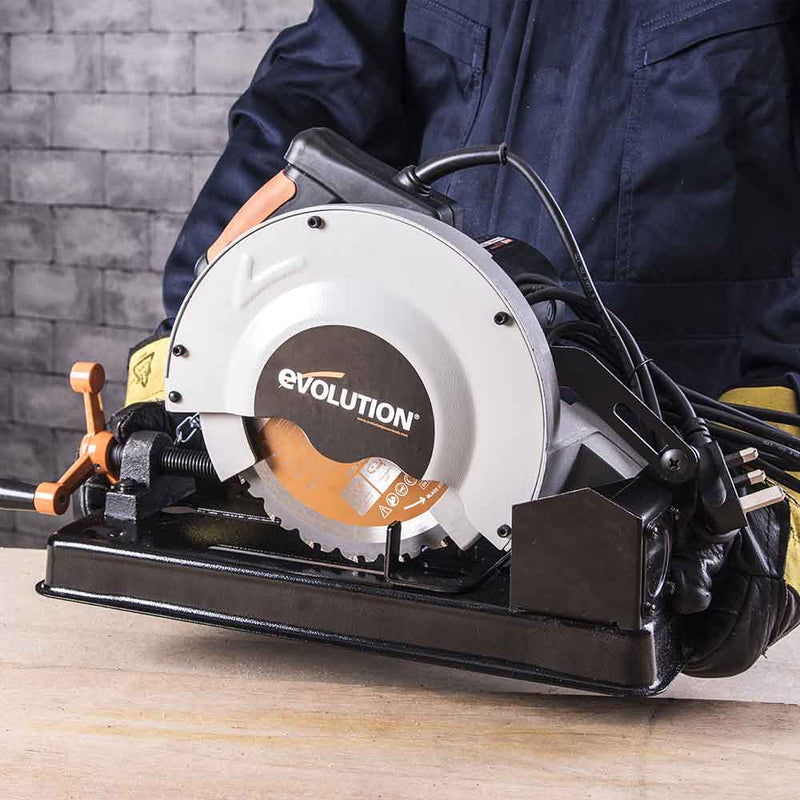

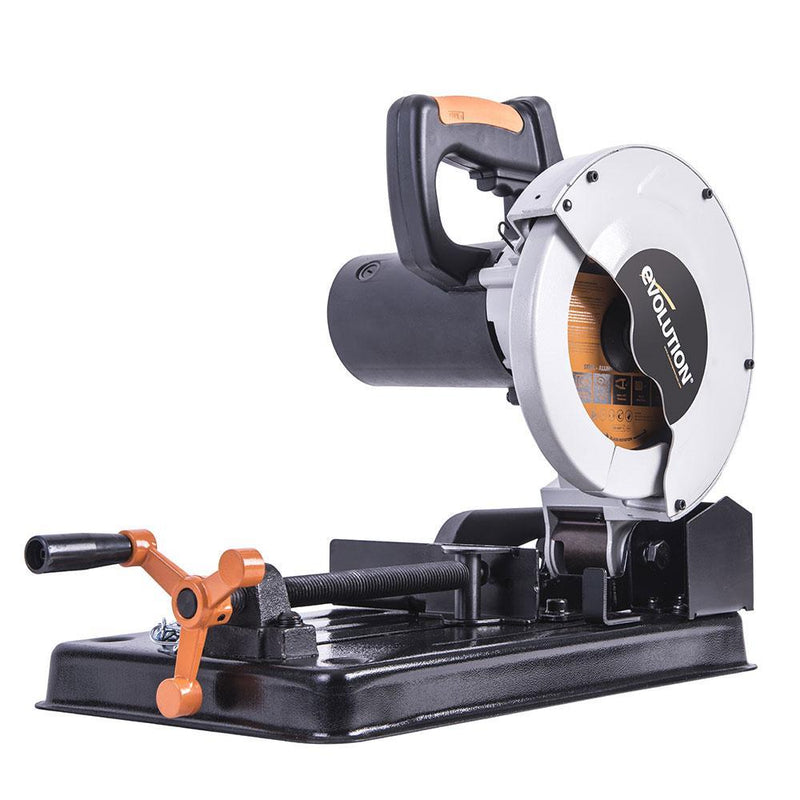

The Evolution RAGE4 is a 185mm chop saw designed exclusively for Electricians and Plumbers. Producing fast, ultra-clean cuts through armoured cable, Unistrut and cable tray, as well as conduit, chrome, copper & plastic pipe, plus plastic hose. Easier to use than a hacksaw, far more portable than a 14" (355mm) chop saw.
Features
-

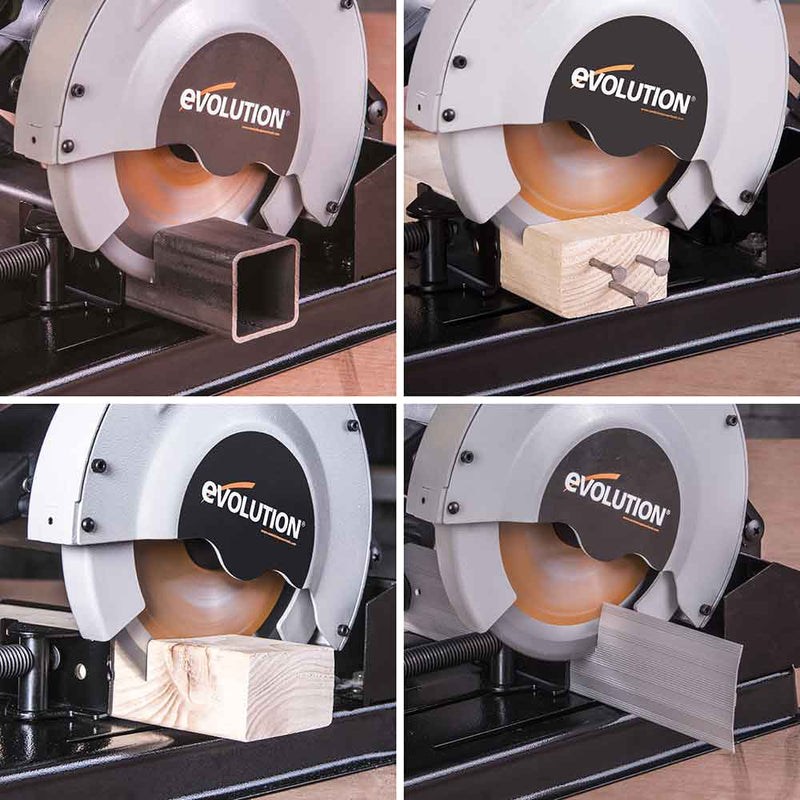

Multi-Material cutting technology. One saw, one blade, cuts all.*
-

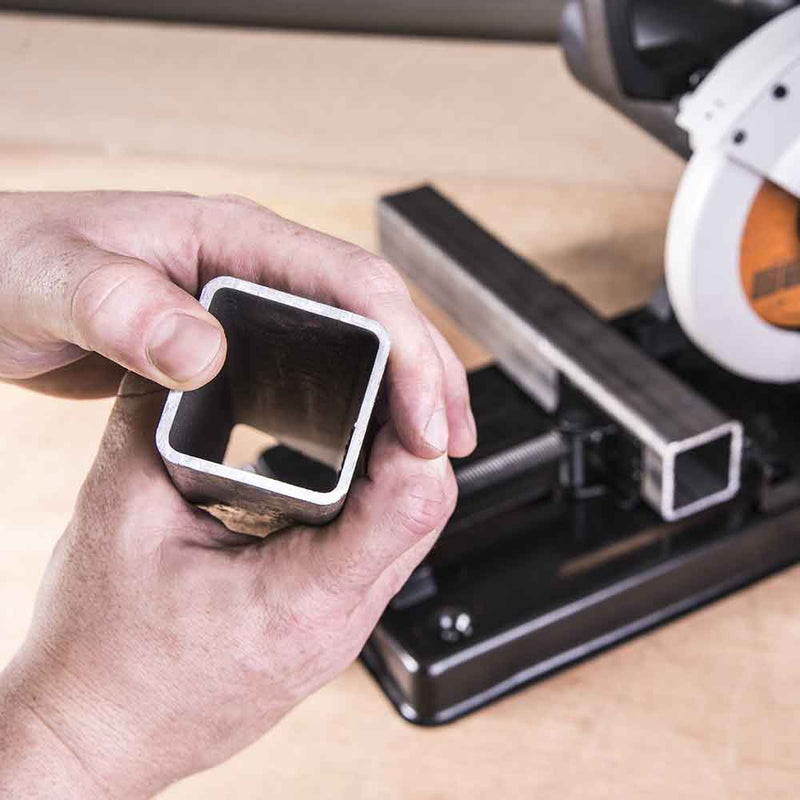

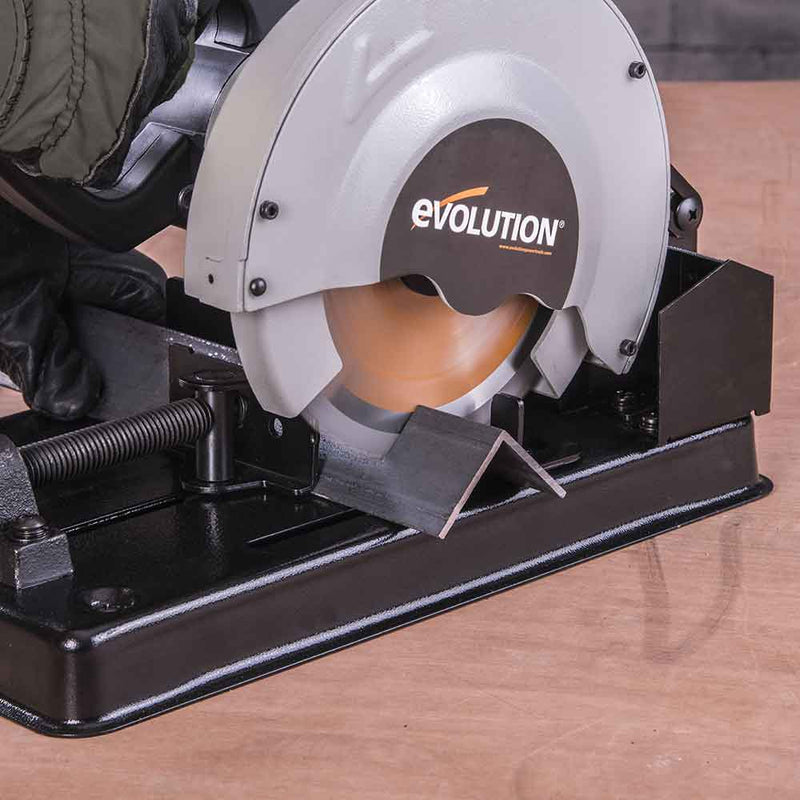

Accurate cutting - cuts mild steel with ready-to-weld, clean & square cold-cuts.
-

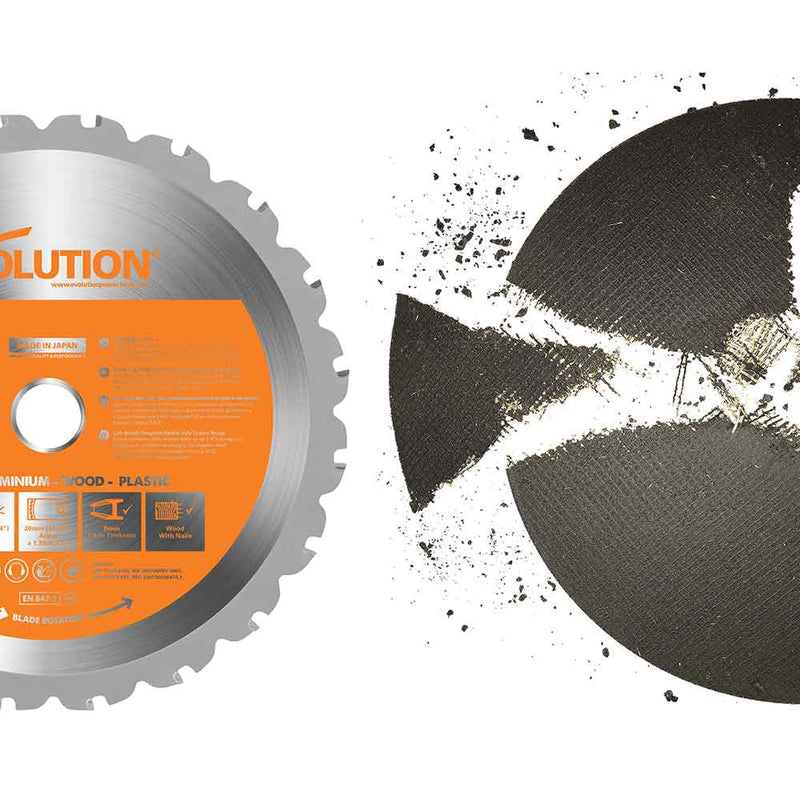

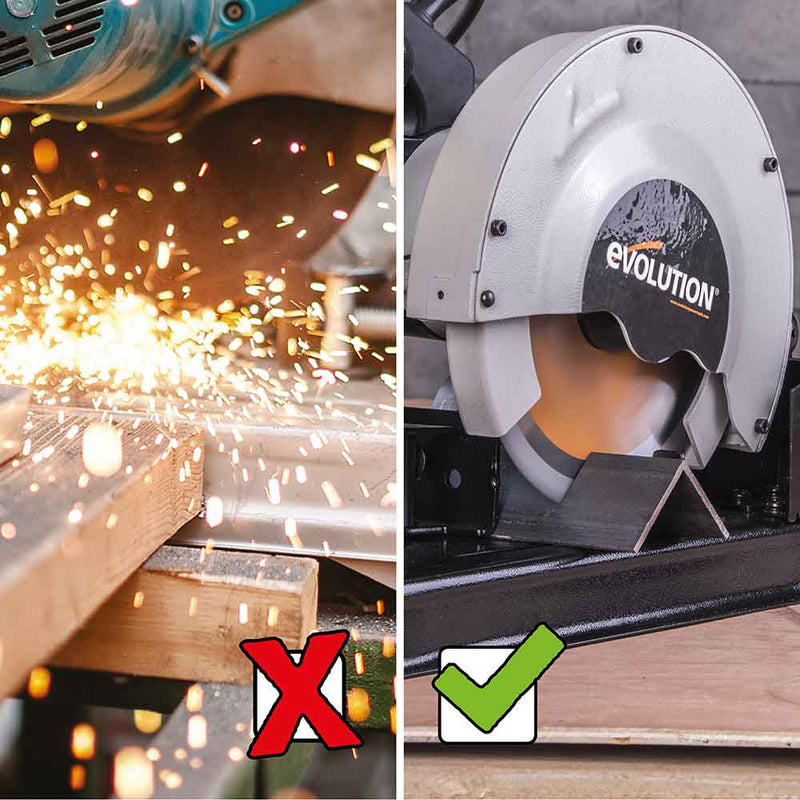

Unlike abrasive cutting, the RAGE4 TCT blade cuts steel with no harmful dust, no burrs & virtually no sparks, leaving an instantly workable finish.
-
Reliable smooth square cutting every time in a variety of materials.
-
Powerful 1250W hi-torque motor with optimised gearbox & blade system.
-

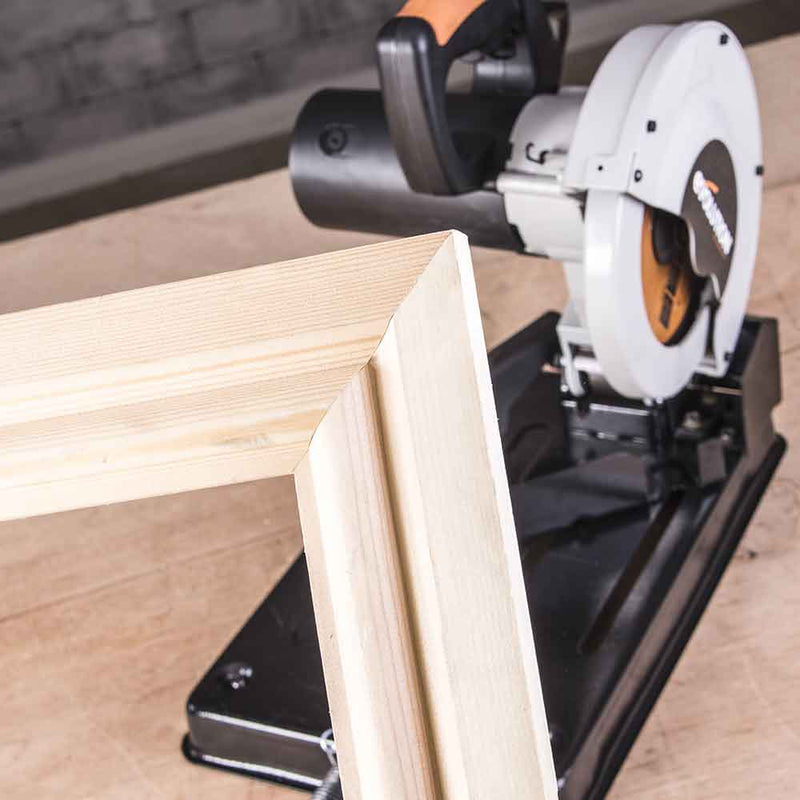

Accurate & durable vice portability with 0˚ - 45˚ mitre detents.
-
A robust, durable base - ideal when handling heavy-duty, metallic applications.
-
Lightweight, easy to transport, taking up little space, weighing only 9.1kg.
-

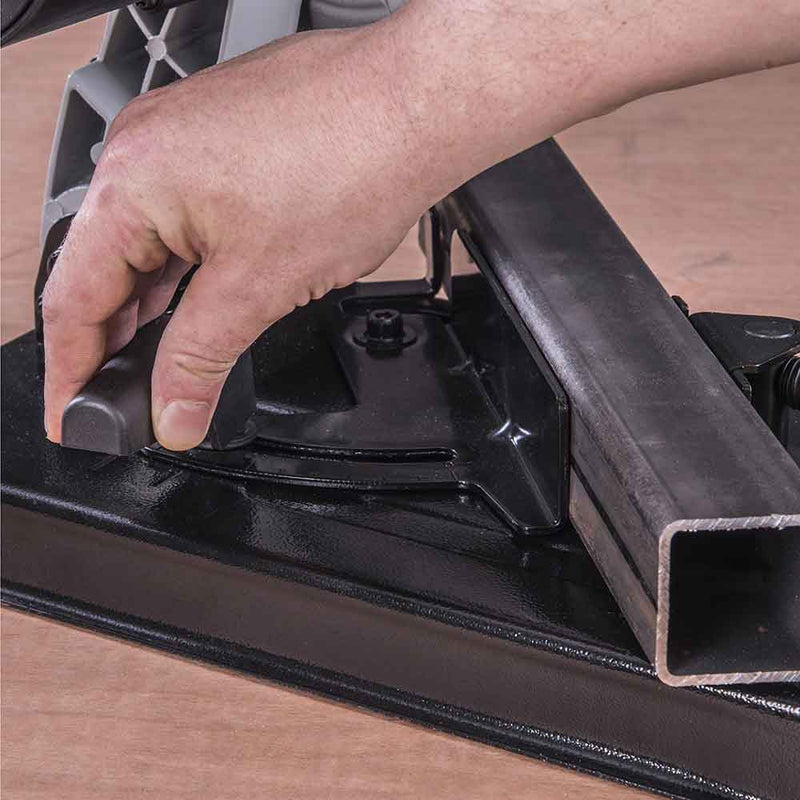

Versatile, repositional fence for cutting of round, square & rectangle materials.
-
Chip guard & dust extraction port for added safety & cleaner working environment.
-
Compatible with the Evolution 185mm Diamond blade for cutting stone, concrete, and brick. (Sold separately).
-

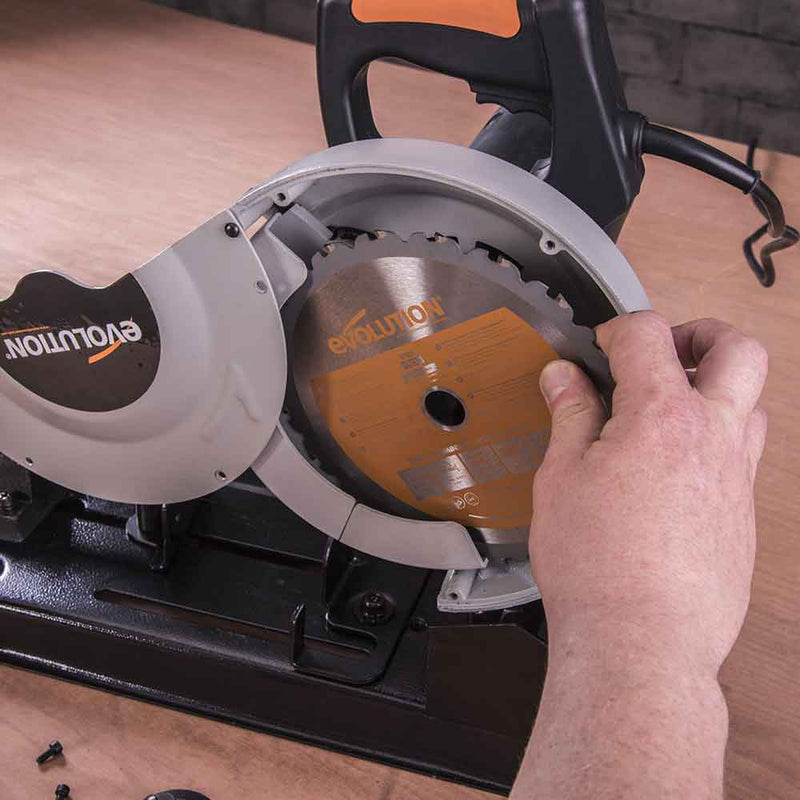

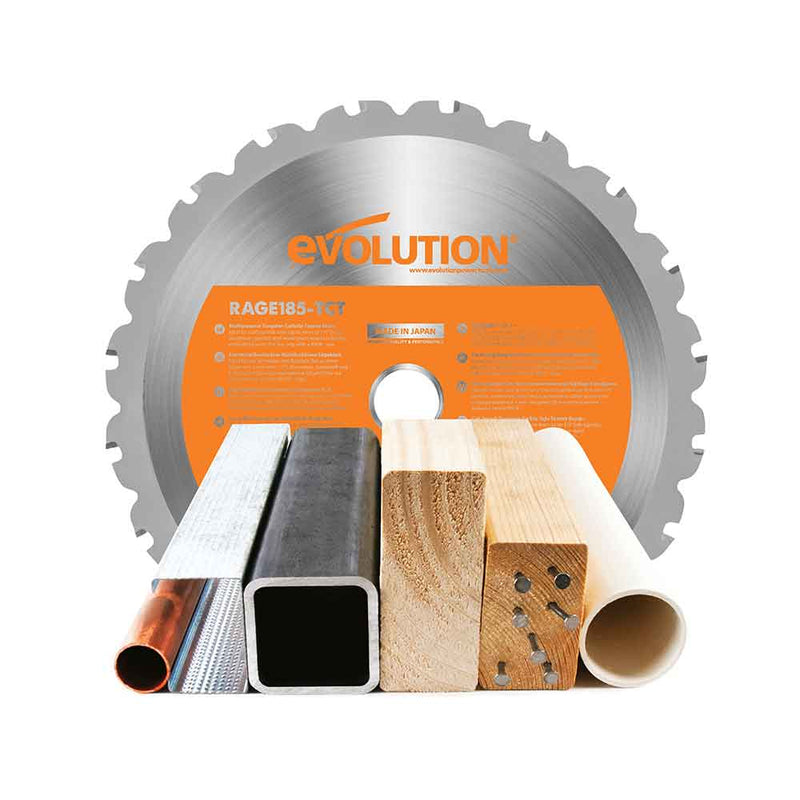

Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
-
3 Year limited warranty.
Specifications
Motor (110V 50Hz): |
1250W |
Motor (240V 50Hz): |
1250W |
Speed No Load: |
4500min-1 / RPM |
Max. Mitre: |
45° |
Blade Dia.: |
185mm |
No. of Teeth: |
20 |
Bore: |
20mm |
Kerf: |
1.7mm |

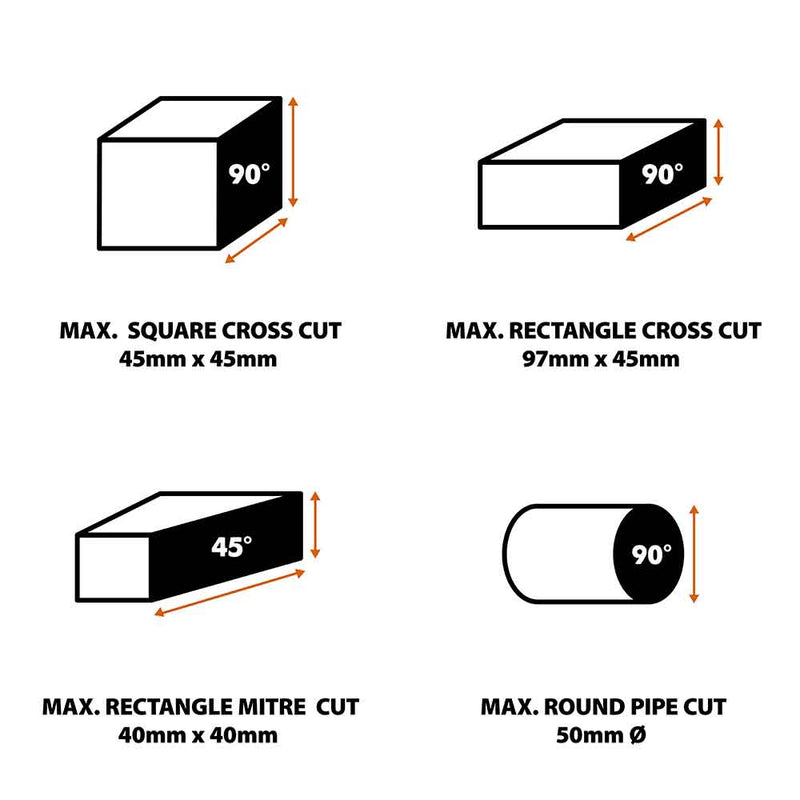

Max. Cross Cut (0° x 0°): |
45 x 97mm |
Max. Mitre Cut (45° x 0°): |
40 x 40mm |
Max Round Tube (0° x 0°): |
50mm |
Mild Steel Plate (Max. Thickness): |
6mm |
Mild Steel Box Section (Max. Wall Thickness): |
3mm |
Product Dimensions: |
255mm x 381mm x 267mm |
Packaging Dimensions: |
510mm x 320mm x 310mm |
Product Weight: |
9.1kg |
Packaged Weight: |
10.2kg |
Sound Pressure Level LPA: |
93dB(A) K=3 dB(A) |
Sound Power Level LWA: |
106dB(A) K=3 dB(A) |
Vibration Level: |
4,5m/s2
|
Uncertainty K: |
1,5m/s2
|
